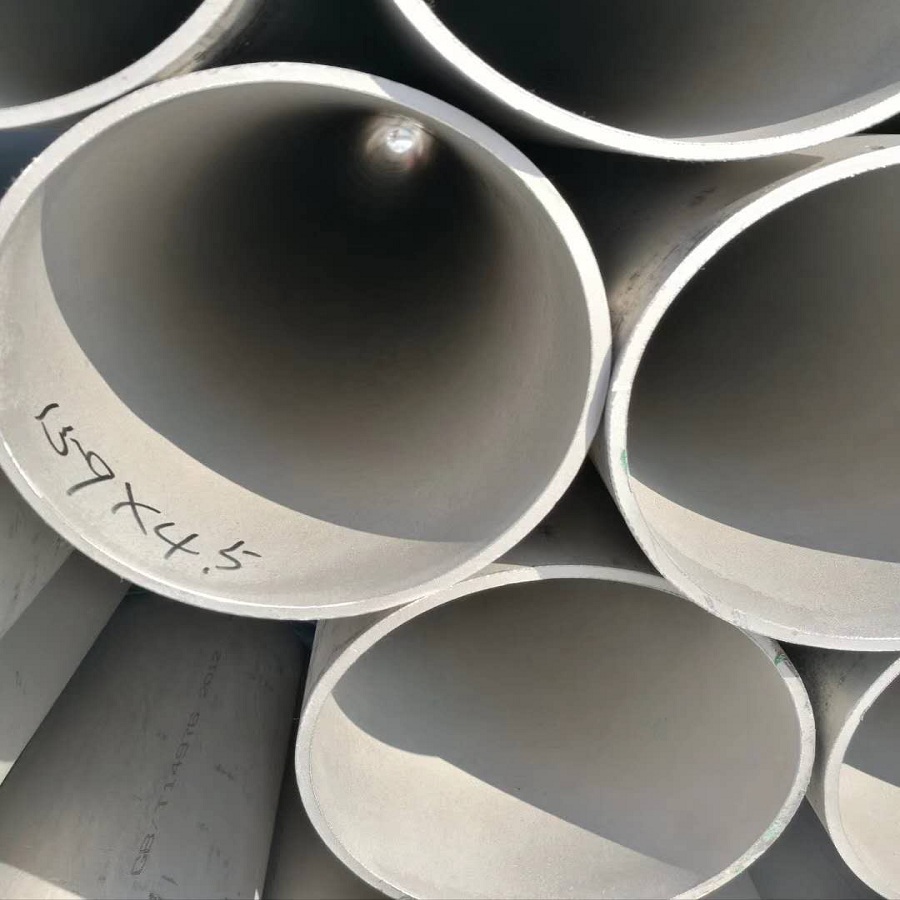

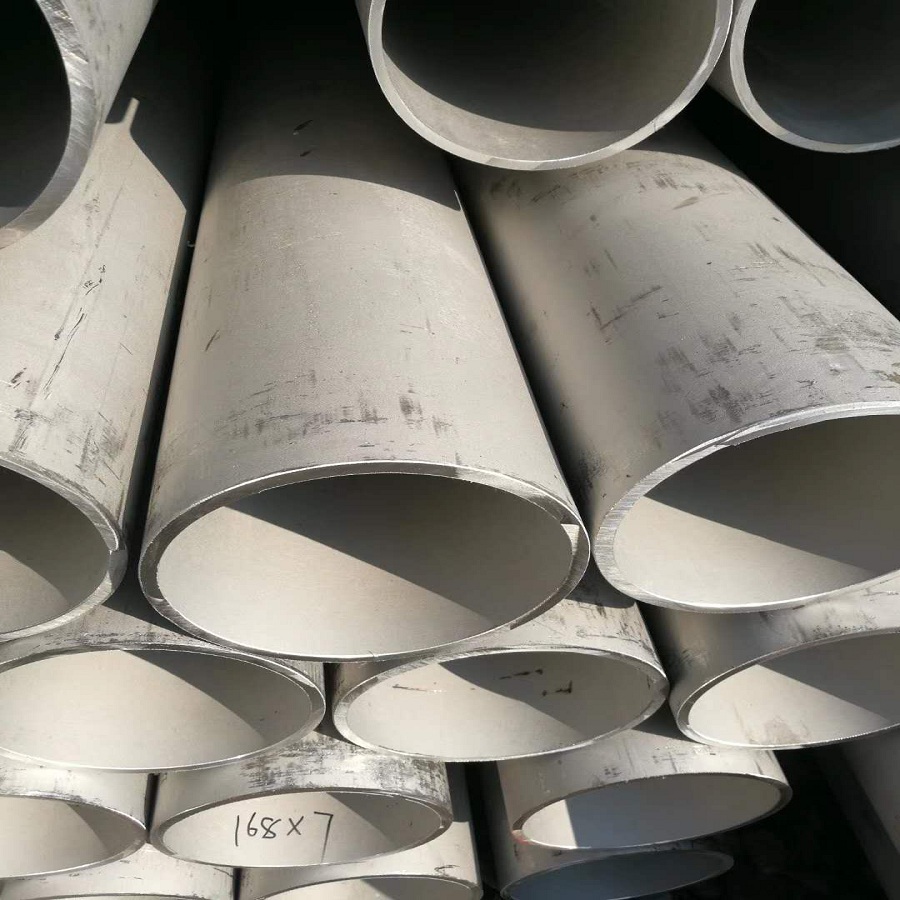

Stainless steel seamless tube
-
Name：Stainless steel seamless tube
Category：Stainless steel seamless tube
Describe：The stainless steel seamless pipe is a long strip of steel with a hollow section and no seams around it.
Hotline：+86-189-3631-2209
E-mail：xumei@jhbxg99.com
The stainless steel seamless pipe is a long strip of steel with a hollow section and no seams around it.
According to different production methods, it can be divided into hot rolled pipe, cold rolled pipe, cold drawn pipe and extruded pipe.
Stainless steel seamless pipe manufacturing process:
1. Hot rolling (extrusion seamless steel pipe): round billet → heating → perforation → three-roll cross-rolling, continuous rolling or extrusion → pipe removal → sizing (or reducing diameter) → cooling → straightening → hydraulic test (or flaw detection) → mark → warehousing.
2. Cold drawn (rolled) seamless steel pipe: round tube blank → heating → perforation → head → annealing → pickling → oiling (copper plating) → multi-pass cold drawing (cold rolling) → blank tube → heat treatment → straightening →Hydraulic pressure test (inspection) → mark → storage.Stainless steel seamless pipe, is an austenitic stainless steel pipe. It has excellent heat resistance in raised temperatures.
Stainless steel pipe are widely used in pipeline construction, oil and chemical industry, nuclear technology, and boiler making industry. The increased carbon content delivers a greater tensile and yield strength.
The austenitic structure of stainless steel also gives it excellent toughness, even down to cryogenic temperatures. We supply and manufacture this pipe with a wide range of sizes, from 10.0mm to 1219mm.
The wall thickness of stainless steel seamless pipe ranges from 0.5mm to 100mm. The common length of each pipe is 5.8m, 6.0m, 11.8m, 12m. The maximum length we produce is up to 18m.
We can produce seamless stainless steel pipes in strict accordance with ASTM, EN, JIS, DIN standard to meet clients' different requirements.
Stainless Steel Seamless Pipe is the most common product, which can be cut to size and pipe with polished finish is also available. A lot of processing services, including punching, painting, beveling, chamfering are all available for us.
With b technical force, advanced equipment and skilled craftsmanship, Sheye Metal can manufacture this pipe and good quality is guaranteed. For metal, we are serious.
Specification of Stainless Steel Seamless Pipe
Size
OD: 10.0 ~ 1219mm; WT: 0.5 ~ 100mm; Length: 5.8m, 6m, 11.8m, 12m, Max.18m
Process
Seamless, Cold Drawn, Cold Rolled, Hot Rolled
End
PE(Plain End), BE(Beveled End), NPT, BW(Butt Weld End)
Surface
Aid Pickling, Polishing, Brushing
Standard
ASTM A312, ASTM A213, EN10216-5, DIN 17456, DIN 17458, JIS G3459, JIS G3463
Theoretical Weight(kg/m)
Weight/meter = (OD-WT)*WT*0.02491 Both OD and WT in mm.
Note:
OD is the specified outside diameter.
WT is the specified wall thicknessChemical Composition
Element
UNS S30409(304H)
%Tolerances, %
C, max
0.04 to 0.10
±0.01
Mn, max
2.00
±0.04
P, max
0.045
±0.005
S, max
0.030
±0.003
Si, max
1.00
±0.05
Ni
8.0 to 11.0
±0.15
Cr
18.0 to 20.0
±0.20
Mechanical Properties
Alloy
Temper
Tensile Strength
Min, MPaYield Strength, 0.2%
Offset, min, MPaElongation in2 in. or
50mm (or 4D), min, %UNS S30409
Solution Annealed
515
205
35
Tolerances in Wall Thickness
NPS Designator
Tolerance, % from Nominal
Over
Under
1/8 to 2-1/2 incl., all t/D ratios
20
12.5
3 to 18 inch., t/D up to 5% incl.
22.5
12.5
3 to 18 inch., t/D＞5%
15
12.5
20 and larger, welded, all t/D ratios
17.5
12.5
20 and larger, seamless, t/D up to 5% incl.
22.5
12.5
20 and larger, seamless, t/D＞5%
15
12.5
Note: t = Nominal Wall Thickness; D = Ordered Outside Diameter
Tolerances in Outside Diameter
NPS Designator
Tolerances in Outside Diameter
Over
Under
in.
mm
in.
mm
1/8 to 1-1/2, incl
1/64 (0.015)
0.4
1/32 (0.031)
0.8
Over 1-1/2 to 4, incl
1/32 (0.031)
0.8
1/32 (0.031)
0.8
Over 4 to 8, incl
1/16 (0.062)
1.6
1/32 (0.031)
0.8
Over 8 to 18, incl
3/32 (0.093)
2.4
1/32 (0.031)
0.8
Over 18 to 26, incl
1/8 (0.125)
3.2
1/32 (0.031)
0.8
Over 26 to 34, incl
5/32 (0.156)
4
1/32 (0.031)
0.8
Over 34 to 48, incl
3/16 (0.187)
4.8
1/32 (0.031)
0.8
Straightness Tolerances
Specified OD, in.
Specified Wall Thickness, in.
Maximum Curvature in any 3ft, in.
Maximum Curvature i Total Length, in.
Up to 5.0 incl.
Over 3% OD to 0.5, incl.
0.03
0.010 x length, ft
Over 5.0 to 8.0, incl.
Over 4% OD to 0.75, incl.
0.045
0.015 x length, ft
Over 8.0 to 12.75, incl.
Over 4% OD to 1.0, incl.
0.06
0.020 x length, ft
-
