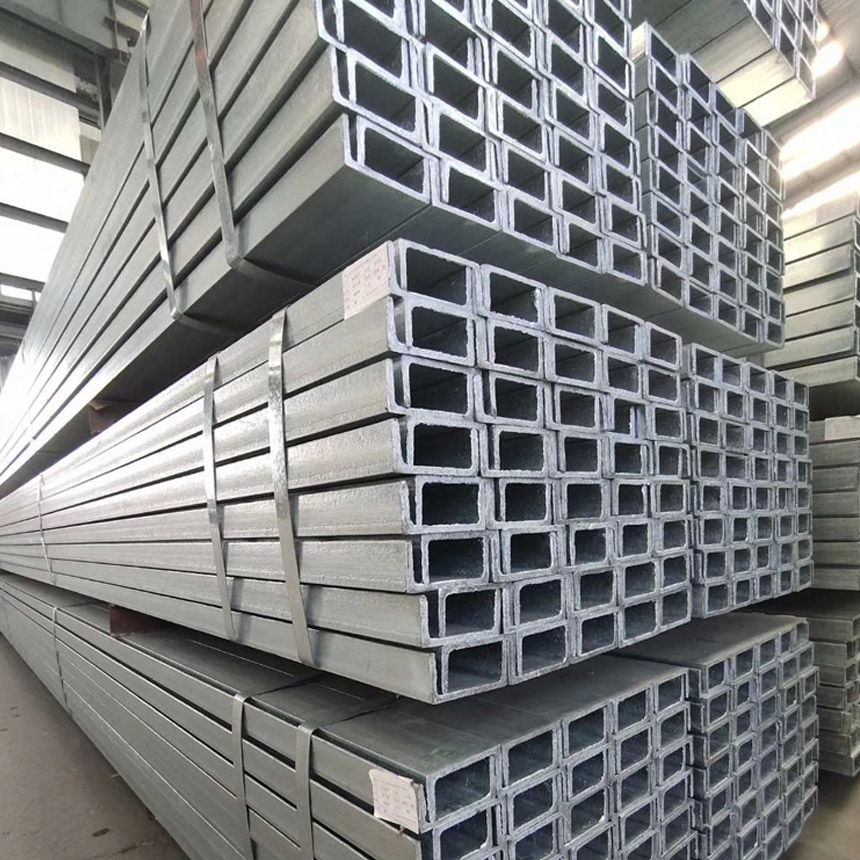

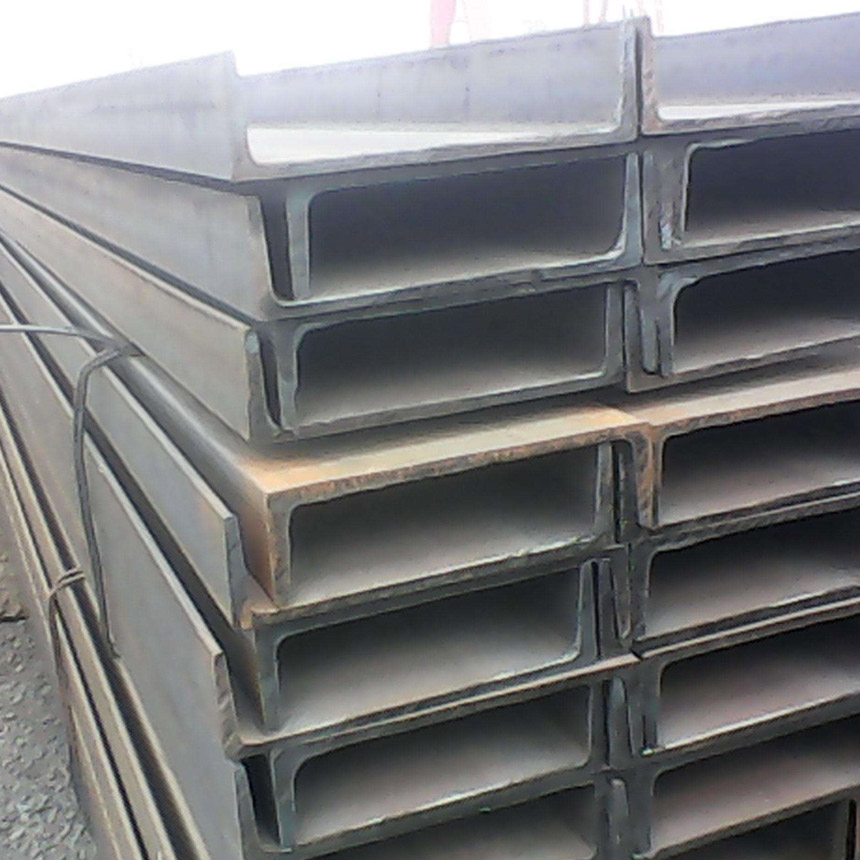

Stainless steel channel
-
Name：Stainless steel channel steel
Category：Stainless steel channel
Describe：Stainless steel channel steel is a long strip of steel with a cross-sectional shape, which is divided into ordinary channel steel and light channel steel. The model and specification are expressed by waist height (h) × leg width (b) × waist thickness (d). The number of millimeters is expressed.
Hotline：+86-189-3631-2209
E-mail：xumei@jhbxg99.com
Stainless steel channel steel is a long strip of steel with a cross-sectional shape, which is divided into ordinary channel steel and light channel steel. The model and specification are expressed by waist height (h) × leg width (b) × waist thickness (d). The number of millimeters is expressed.
Main use: Ordinary channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures, often used in conjunction with I-beam.
Commonly used materials are: 201, 202, 301, 304, 321, 316, 316L, special materials can be customized.Stainless steel channel bar can be manufactured by hot rolled or laser fused technique or bending plate.
The maximum size we manufacture is up to 60mm x 120mm x 7mm by hot rolled. For size over 120mm, we can adopt advanced laser fused and press bending technique.
These stainless steel channel bar have a dull gray mill finish. It has merits of high strength, toughness, corrosion-resistance and easy sanitizing properties.
They are widely used in a large variety of industries, such as tracks, holders, supports, reinforcement, shipping building, etc.
The channels steel mainly in 304/304L, 316/316L, 310/S, Duplex 2205. All stainless channels can be cut to size according to customer's specified requirement.
stainless steel channel bar with polished finish are also available.We can polish the surface of stainless channels to mirror finish, brushing finish, or others.
Specification
Size
Hot Rolled: 40 x 80 x 4 mm ~ 60 x 120 x 7mm;
Welding: 25 x 50 x 3mm ~ 100 x 280 x 12mm;
Bending: As your request.
Length: 5.8m, 6m, or As RequestTechniques
Hot Rolled (Extruded), Welding(Laser Fused), Press Bending
Surface
Pickled ,Bright, Polishing, Mirror, Hairline,
Service
Stainless Channel Cutting;
Stainless Channel Polishing;
Stainless Channel PMI Testing;Main Grades of Stainless Steel Channel
Stainless Steel Channel Bar
300 Series Stainless Steel Grades
301, 302, 303, 304/L, 304H, 309/S, 310/S, 316/L/Ti, 317/L, 321/H, 347/H
400 Series Stainless Steel Grades
409/L, 410, 416, 420, 440C, 430, 431
Duplex Stainless Steel Series
2205, 2507
Nickel-base Alloy Series
904L, 17-4PH, 17-7PH,F51, F55, 253MA, 254SMO, Alloy C276, N08367, N08926, Monel400, Inconel625, Inconel718
Standard
ASTM A276, ASTM A479, ASTM A484, EN 10279
Tolerances in Size of Hot Rolled Stainless Steel Channels
Specified Size of Stainless Channels, mm
Size Tolerances, Over and Under, mm.
Depth of Section A
Width of Flanges
Thickness of Web for Thickness Given
Out-of-Square B of Either Flange, mm/ mm of Flange Width
To 5.00mm
Over 5.00mm
To 38.00mm, incl.
1.20
1.20
0.41
0.60
1.20
Over 38.00 to 75.00mm, excl.
2.40
2.40
0.60
0.80
1.20
Note A: Channel depth is measured at back of web.
Note B: For channel 15.50mm and under in depth, the out-of-square tolerance is 2.00 mm/mm of depth. Out-of-squareness is determined by placing a square against the bottom surface of the web and measuring the amount of toe-in or toe-out of either flange. Measurements for depth of section and width of flanges are over-all.Common Size of Hot Rolled Stainless Steel Channel (mm)
Thickness
Depth
Width
4 5 6
40
80
4 5 6
50
100
5 6 7
60
120
Common Size of Welded Stainless Steel Channel (mm)
Thickness
Depth
Width
3 4 5
25
50 55 60 65 75
3 4 5
30
60 65 70 75 80
3 4 5
40
80 85 90 95 100 105 110 115 120 125 130 135 140 150 155 160 165 170 175 180
4 5 6
50
100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220
5 6 7
60
165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240
6 7 8
70
140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260
6 7 8 9
75
150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270
7 8 9 10
80
160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280
8 9 10 12
100
200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280
Packing Information
Stainless Steel channel bars are packed according to the customer's requirement. To avoid any damage which might be caused during international transportation, we provide some optional packaging methods, including woven bags, plywood cases, and wooden boxes.-
