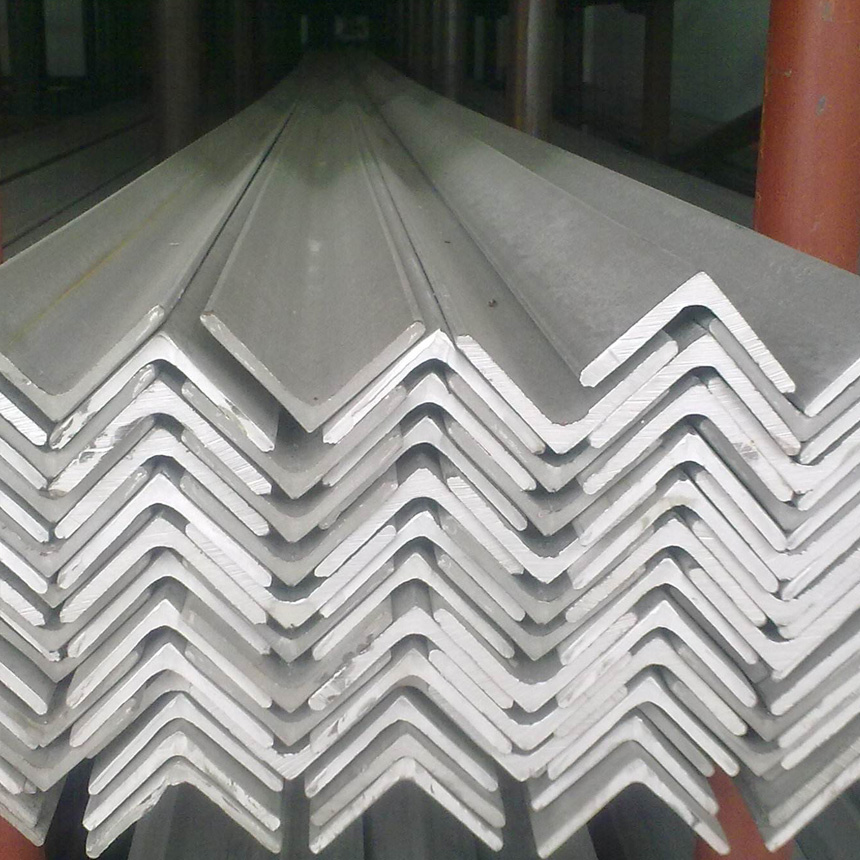

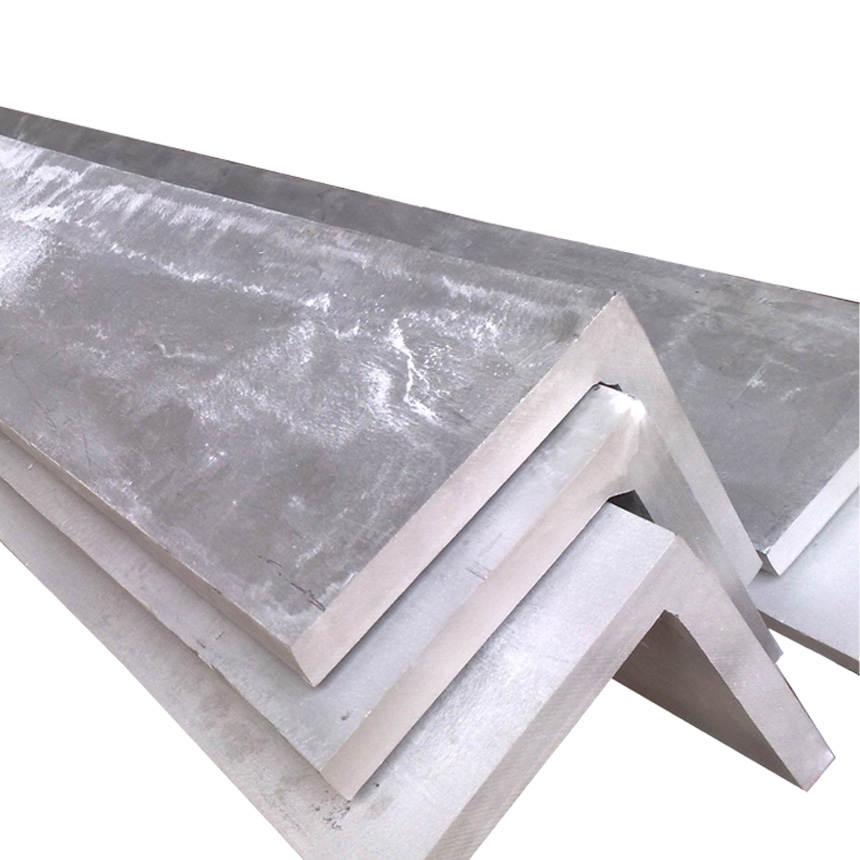

Stainless steel angle bar is the most common product, so we always stock almost all steel grades to meet a large market demand. The steel grade we stock includes 200 series stainless steel angles, 300 series stainless steel angles, 400 series stainless steel angles, and super alloy angle bars.

They are widely used in construction and shipping building industry and various machinery and hardware field.

Note:

W is the specified length of the length of the leg.

T is the specified thickness

W1 and W2 are the specified length of the length of the legs.

Main Grades

1.Standards:

AISI, ASTM, DIN, EN, GB and JIS; ASTM A276, A484, A564, A581, A582, EN 10272, JIS4303, JIS G 431, JIS G 4311 and JIS G 4318

2.Materials(Grade):

300series: 301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,

200series:201,202,202cu, 204;

400series:409,409L,410,420,430,431,440;

Others:2205,2507,330,660,630,631,17-4ph,17-7 ph,904L,etc

Permitted Tolerance for Stainless Steel Hot Rolled Angles

1. Weight

1.1 For angles of 9.0 kg/m[6 lb/ft] or less, the weight tolerances shall not exceed+/-7.5%.

1.2 For angles over 9.0 kg/m[6 lb/ft], the weight tolerances shall not exceed+/-7.5%.

2. Length of Legs

2.1 For stainless steel angles having legs or flanges up to 150 mm [6 in.], the length tolerance shall not exceed +/-3.00mm[+/-0.125in.]

2.2 For stainless steel angles having legs or flanges over 150mm, the length tolerance shall not exceed +5.00mm[0.1875in.] and -3.00mm[0.125in.]

3. Squareness of Legs

3.1 The tolerance for the right angle between the legs is+/-2°.

Note-1:

Theoretical Weight of Equal Stainless Steel Angles

Theoretical Weight per meter:

Weight/meter = 0.00793*T*(2W-T)     Both W and T in mm.

Theoretical Weight per foot:

Weight/foot = (24 W X T - 12T²）(0.2871 lb/ft)    Both W and T in inch.

W is the specified length of the length of the leg.

T is the specified thickness

Note-2:

Theoretical Weight of Unequal Stainless Steel Angles

Theoretical Weight per meter:

Weight/meter = 0.00793*T*(W1+W2-T)    Both W1 ,W2 and T in mm.

Theoretical Weight per foot:

Weight/foot = (12 W1X T  + 12 W2 - 12T²）(0.2871 lb/ft)     W1 , W2 ,T all in inch.

W1 and W2 are the specified length of the length of the legs.

T is the specified leg thickness

Packing Information

Angle bars are packed according to the customer's requirement. To avoid any damage which might be caused during international transportation, we provide some optional packaging methods, including woven bags, plywood cases, and wooden boxes。
