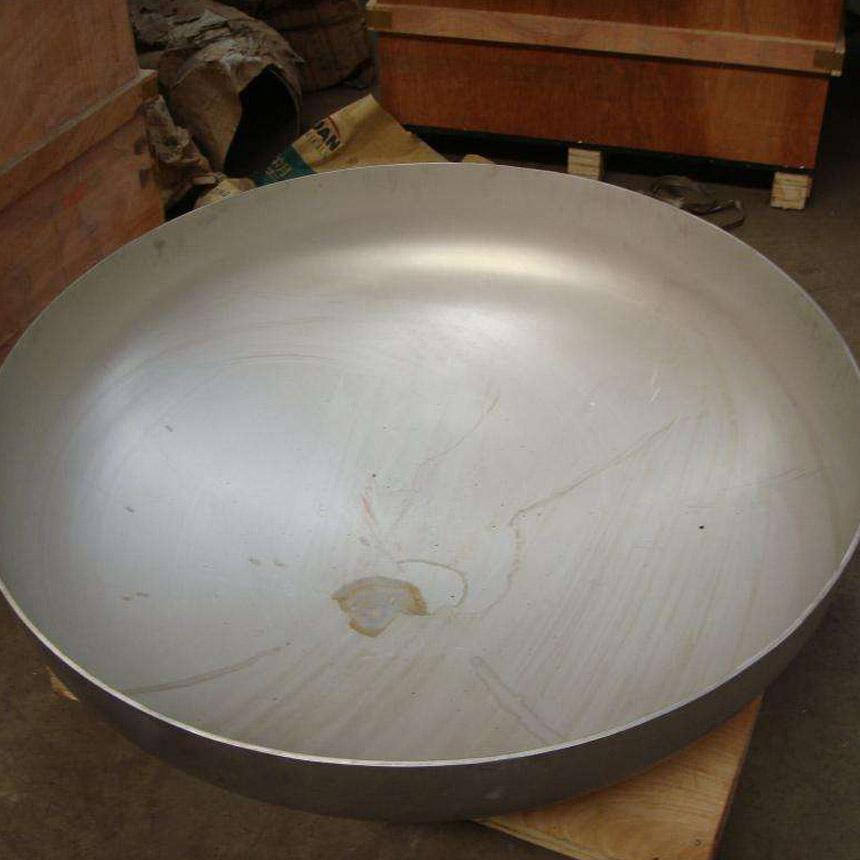

Stainless steel head
-
Name：Stainless steel head
Category：Stainless steel head
Describe：The stainless steel head is a product used to seal stainless steel pipes. It is a product used for the container after the pipe has been headed or welded to the two ends of a pipe. Similar products have blind plates, caps, plugs and so on.
Hotline：+86-189-3631-2209
E-mail：xumei@jhbxg99.com
The stainless steel head is a product used to seal stainless steel pipes. It is a product used for the container after the pipe has been headed or welded to the two ends of a pipe. Similar products have blind plates, caps, plugs and so on.
Our company can supply various types of stainless steel pipe fittings and good quality is guaranteed.
Various steel grades stainless steel caps are produced with complete specifications and supreme quality. Sheye Metal has fine equipment and complete quality management, establishes modern quality management system, introduces internationally advanced technology and adopts international advanced production technique.
These caps are widely applied to industries as petroleum, chemical industry, machinery, electric power, chemical fiber, papermaking, printing and dyeing, food and pneumatic parts etc.
The company provides complete inspection equipment and adopts technical standards for various types of stainless steel caps, the size of which we produce ranges from DN15-DN1200.
Stainless Steel Caps
Size
OD: Seamless DN15-DN600; Welded DN15-DN1200 WT:SCH5S-SCH160;
Process
Press Forming
Surface
Shot Blasted, Rolling Sand, Polishing
Main Grades
Austenitic/Super Austenitic Stainless Steel Caps
304, 304H, 304L, 304LN, 321, 321H, 316, 316L, 316LN, 316Ti, 317L, 310S, 310H, 314, 347H, 904L, S31254, N08367, N08926, S32654, S31277
Ferrite/Super Ferrite Stainless Steel Caps
405, 430, 439, 444, TP446-1/TP446-2, S44660, S44735, S44736
Duplex/Super Duplex Stainless Steel Caps
S31500, S31803, S32205, S32304, S32520， S32550, S32750, S32760
Martensite/Super Stainless Steel Caps
410S, 410, 420, 420J2, 431, 17-4PH, 13Cr110, 17Cr110/125
Nickel Alloy Caps
N04400, N05500, N06600, N06601, N06025, N06617, N06625, N06690, N08810, N10276, N06022, N10665, N10675, N08020, N08028, N08031, N06985, N06030, N06035, N07750
Production Standard
ASME
ASTM B16.9
SH
SH3408, SH3409
HG
HG/T 21635, HG/T 21631
DIN
DIN 2605
JIS
JIS B2313
GB/T
GB/T 12459
Tolerance in butt-welding fittings(ASTM/AISI B16.9、B16.28)
Specifications
Types
Nominal diameter
1/2-21/2
3-31/2
4
5-8
10-18
20-24
26-30
32-48
Outside Diameter
All SS Pipe Fittings
+1.52
±1.52
+2.29
+4.06
+6.35
-0.76
-
-1.52
-3.05
-4.83
Inside Diameter
All Fittings
±0.76
-
±3.05
±4.83
Wall Thickness
All Fittings
≥0.875*WT
Length
Caps
±3.05
±6.35
±9.65
Dimension
Nominal Diameter
Outside Diameter at Bevel
Back to End
DN
NPS
Series A
Series B
E
T
E1
15
1/2
21.3
18
25
4.57
25
20
3/4
26.9
25
25
3.81
25
25
1
33.7
32
38
4.57
38
32
1.1/4
42.4
38
38
4.83
38
40
1.1/2
48.3
45
38
5.08
38
50
2
60.3
57
38
5.59
44
65
2.1/2
76.1(73)
76
38
7.11
51
80
3
88.9
89
51
7.62
64
90
3.1/2
101.6
-
64
8.13
76
100
4
114.3
108
64
8.64
76
125
5
139.7
133
76
9.65
89
150
6
168.3
159
89
10.92
102
200
8
219.1
219
102
12.70
127
250
10
273.0
273
127
12.70
152
300
12
323.9
325
152
12.70
178
350
14
355.6
377
165
12.70
191
400
16
406.4
426
178
12.70
203
450
18
457.2
478
203
12.70
229
500
20
508.0
529
229
12.70
254
550
22
559
-
254
12.7
254
600
24
610
630
267
12.7
305
650
26
660
-
267
-
-
700
28
711
720
267
-
-
750
30
762
-
267
-
-
800
32
813
820
267
-
-
850
34
864
-
267
-
-
900
36
914
920
267
-
-
950
38
965
-
305
-
-
1000
40
1016
1020
305
-
-
1050
42
1067
-
305
-
-
1100
44
1118
1120
343
-
-
1150
46
1168
-
343
-
-
1200
48
1220
1220
343
-
-
Note: When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.
Packing Information
Products from Sheye Metal are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or international transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.-
