Stainless steel diamond sheet
-
Name：Stainless steel diamond plate
Category：Stainless steel diamond sheet
Describe： Stainless Steel Diamond Plate is embossed on a stainless steel plate by mechanical equipment to make the surface
Hotline：+86-189-3631-2209
E-mail：xumei@jhbxg99.com

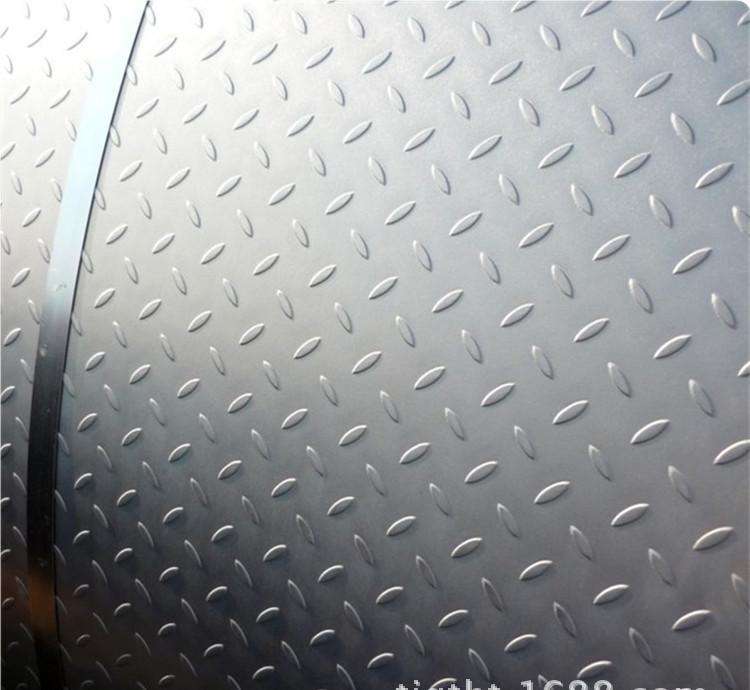

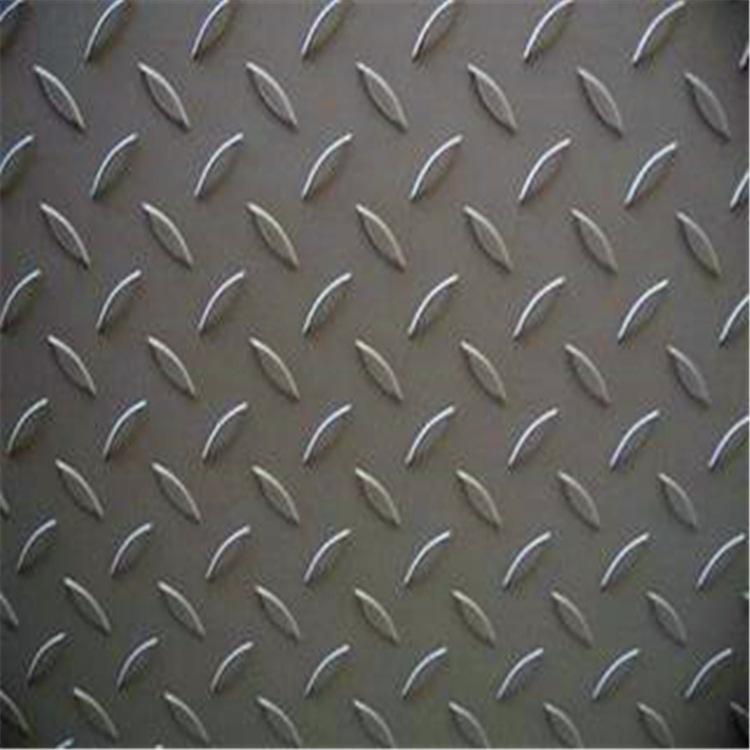

Stainless Steel Diamond Plate is embossed on a stainless steel plate by mechanical equipment to make the surface of the plate appear concave and convex.
Stainless steel diamond plate also known as stainless floor sheet or stainless steel checkered sheet, stainless thread sheet, has a raised diamond lug pattern, functioning skidproof and anticorrosive.
The diamond plates are always inventoried in 304(L), and 316(L). 2B finish and No.1 finish stainless steel diamond sheet are both available.
Stainless steel diamond plate are widely used in trailer and truck bed flooring, running boards, walkways, and platforms, etc., the thickness of which we produce ranges from 0.3mm to 12.0mm. It is easy to weld, cut, form, and machine. For metal, we are serious.
Specification
Size
Thickness: 0.3 ~ 12.0 mm; Width: 1000 ~ 3000mm; Length: 2000 ~ 6000mm, or as Request.
Techniques
Cold Rolled, Hot Rolled
Surface
2B, No.1
Theoretical Weight(kg/m)
Weight/meter = T*xieW*L*7.93(7.98) T in mm, Both W and L in m.
Note:
L is the specified length.
W is the specified width.
T is the specified thicknessMain Grades and Standards
1.Standards:
ASTM A793
2.Materials(Grade):
304, 304L, 316, 316L
3.Pattern
Pattern A: percent of reduction, 61%.
Pattern B: original of raised figures approximately 1-1/4 in., percent of reduction 61%.
Pattern CChemical Composition of Stainless Steel Diamond Sheet
Type
C≤%
Mn≤%
P≤%
S≤%
Si≤%
N≤%
Ni %
Cr %
Mo %
304
0.08
2.00
0.045
0.030
0.75
0.10
8.00-10.50
18.00-20.00
…
304L
0.030
2.00
0.045
0.030
0.75
0.10
8.00-12.00
18.00-20.00
…
316
0.08
2.00
0.045
0.030
0.75
0.10
10.00-14.00
16.00-18.00
2.00-3.00
316L
0.030
2.00
0.045
0.030
0.75
0.10
10.00-14.00
16.00-18.00
2.00-3.00
This material shall conform to the requirements of one of the grades listed in the above table. Annealing shall be the last heat treatment to which the material is subjected by the manufacturer.
Tolerance over Specified Width and Length, mm.
Note: Any other ordered thickness may be subject to agreement between purchaser and seller.Specified Dimensions
Tolerances
Thickness Under 9.5mm
Thickness 9.5 to12.7, mm
Width
Length
Width
Length
Width
Length
1219 and Under, mm
6096 and under, mm
3.2mm
4.8mm
4.8mm
6.4mm
Over 1219 to 1524, mm
6096 and under, mm
4.8mm
6.4mm
6.4mm
7.9mm
-
