stainless steel strip
-
Name：stainless steel strip
Category：stainless steel strip
Describe：Stainless steel strips is the cold rolled stainless steel under 5.00 mm in thickness and under 610mm in width. The various types of finish procurable on cold-rolled stainless strips are No.1 Finish, No.2 Finish, BA Finish, TR Finish, and Polished Finish.
Hotline：+86-189-3631-2209
E-mail：xumei@jhbxg99.com

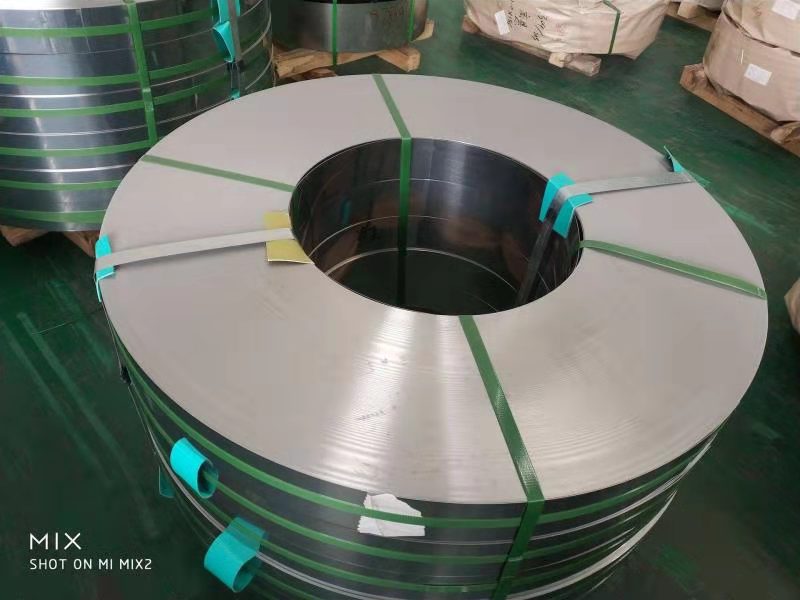

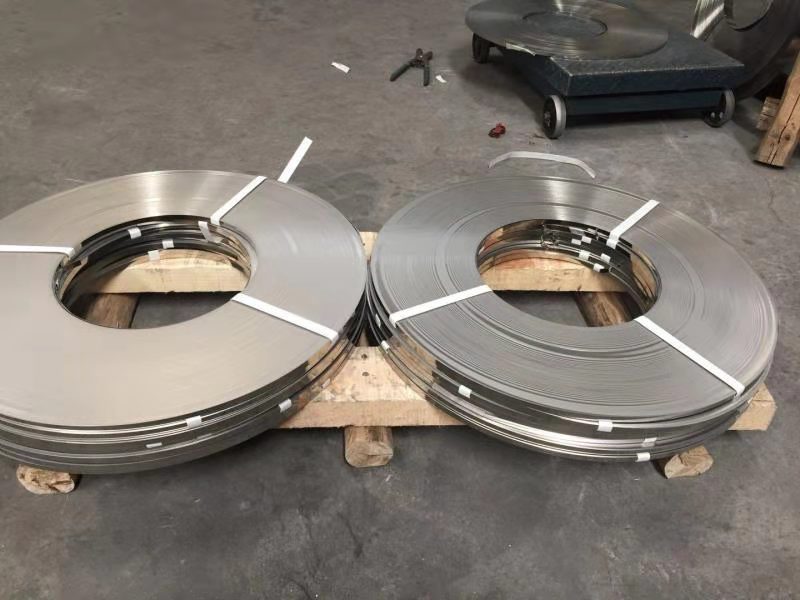

Stainless steel strips is the cold rolled stainless steel under 5.00 mm in thickness and under 610mm in width.
The various types of finish procurable on cold-rolled stainless strips are No.1 Finish, No.2 Finish, BA Finish, TR Finish, and Polished Finish.
The types of edges available on stainless strips are No.1 edge, No.3 edge, and No.5 edge. These strips are inventoried in 200 series, 300 series, 400 series.
Our best-selling product includes 201 stainless steel strips, 202 stainless steel strips, 301 stainless steel strips, 304 and 304L stainless steel strips, 316 and 316L stainless steel strips, 409, 410, and 430 stainless steel strips.
The thickness of them ranges from 0.02mm to 6.0mm. The minimum tolerance in thickness is only 0.005mm. For metal, we are serious.
Specification
Size
Thickness: 0.02 ~ 6.0mm; Width:0 ~ 610mm
Techniques
Cold Rolled, Hot Rolled
Surface
2B, BA, 8K, 6K, Mirror Finished, No.1, No.2, No.3, No.4, Hair Line with PVC
Standard
ASTM A240, ASTM A480, JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441
Tolerances in Thickness
Specified Thickness, mm
Thickness Tolerances, for the Thickness and Widths Given, Over and Under, mm.
Width (w), mm.
W≤152mm
152mm＜W≤305mm
305mm＜W≤610mm
Thickness Tolerance A
0.05 to 0.13, excl.
10%
10%
10%
0.13 to 0.25, incl.
0.015
0.020
0.025
0.25 to 0.30, incl.
0.025
0.025
0.025
0.30 to 0.40, incl.
0.025
0.04
0.04
0.40 to 0.50, incl.
0.025
0.04
0.04
0.50 to 0.74, incl.
0.04
0.04
0.050
0.74 to 0.89, incl.
0.04
0.050
0.050
0.89 to 1.27, incl.
0.060
0.070
0.070
1.27 to 1.75, incl.
0.070
0.070
0.070
1.75 to 2.54, incl.
0.070
0.070
0.10
2.54 to 2.98, incl.
0.10
0.10
0.12
2.98 to 4.09, incl.
0.12
0.12
0.12
4.09 to 4.76, incl.
0.12
0.12
0.15
Note A : Thickness Tolerances given I mm unless otherwise indicated.
Tolerances in Width
Specified Thickness, mm
Width Tolerance, Over and Under, for Thickness and Width Given, mm
W≤40mm
152mm＜W≤305mm
150mm＜W≤305mm
152mm＜W≤305mm
0.25
0.085
0.10
0.125
0.50
0.50
0.125
0.125
0.25
0.50
1.00
0.125
0.125
0.25
0.50
1.50
0.125
0.15
0.25
0.50
2.50
…
0.25
0.40
0.50
3.00
…
0.25
0.40
0.60
4.00
…
0.40
0.40
0.60
4.99
…
0.80
0.80
0.80
-
